Showing all 9 results
Read MoreSPECIFICATIONS
GENERAL
Power output: 28 Watts total (7 watts per channel)
Frequency response: 100Hz – 15kHz
Input Impedance: 100 ohms
Output Impedance: < 1 ohm
Mains power: 88-264V AC 47-63Hz
Battery power: 12VDC – smart charger built into unit.
Case: 2U rack mounted case – black powder coated steel
Fron
Read MoreEnclosure
Size : 2U (88mm x 482mm x 280mm HxWxD)
Electrical
Input Voltage: 100-240V AC
Frequency: 47-63HzRecording is via an Intel NUC i3 with a 1000GB (1TB) SSHD & 8 GB RAM.
The system will record 116 hours of two diver recordings at 1920×1080 resolution.
Operating system is Linux with Rennisons proprietary video capture software.
The software is intuitive & very
Read MorePortable Single Diver Specifications
- The DV1C2 is a portable single diver video capture and two diver communications system.
- The unit can be run on 100-240VAC 50/60Hz via an earth leakage circuit breaker and has a built in Lithium Ion Cobalt battery (25.9VDC 6.9Ah) as a backup in case of mains failure.
- Camera output voltage is 24V DC (nominal).
- LED Light output voltage is 24V DC (nominal) and dimming voltage is 24 – 0V D
Read MoreSpecifications
- The DV2C3 is a portable two diver video capture and three diver communications system.
- The unit can be run on 100-240VAC 50/60Hz via an earth leakage circuit breaker and has a built in Lithium Ion Phosphate battery (25.6VDC 6.4Ah) as a backup in case of mains failure. This changes over seamlessly & notifies the operator via the mains fail alarm.
- Mains fail alarm & battery status monitor on operating panel.

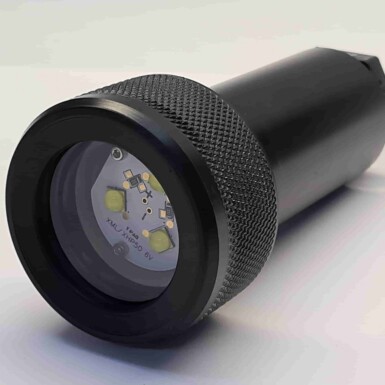

Read MoreLED Light Specifications
Mechanical
Overall Length: 110mm excluding connector
Body diameter: 41mm
Material: Black Anodized Aluminium
Depth rating: 1000m
Electrical
Input Voltage: 24V DC
Power: 21 Watts
Analog Dimming: 5V DC to 0V DC or 24V DC to 0V DC (minimum to maximum)
LED Properties
Colour Tempe
Read MoreCamera Control Unit Specifications
Features
Independent power supplies for each diver.
Short circuit, overload & voltage overload protection.
Output sockets on rear panel can be specified by the purchaser & configured as required.
Enclosure
Size: 2U (88mm x 482mm x 280mm HxWxD)
Electrical
Input Voltage: 88-264V AC
Read MoreHigh Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
HD Lens: 3MP size 3.6mm
Image sensor: 1/3” Sony IMX291+FH8536E (Starlight)
Resolution: PAL 1920 x 1080 @ 25fps
NTSC 1920 x 1080 @ 30fps
Min Illumination: 0.0001 Lux @ F1.2
Read MoreStandard Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
SD Lens: size 3.6mm
Image sensor: 1/3” Super Sony Effio IMX138+8520
Resolution: 1200TVL
Signal System: PAL / NTSC
Min Illumination: 0.001 Lux @ F1.2
Voltage: 15-30V DC
