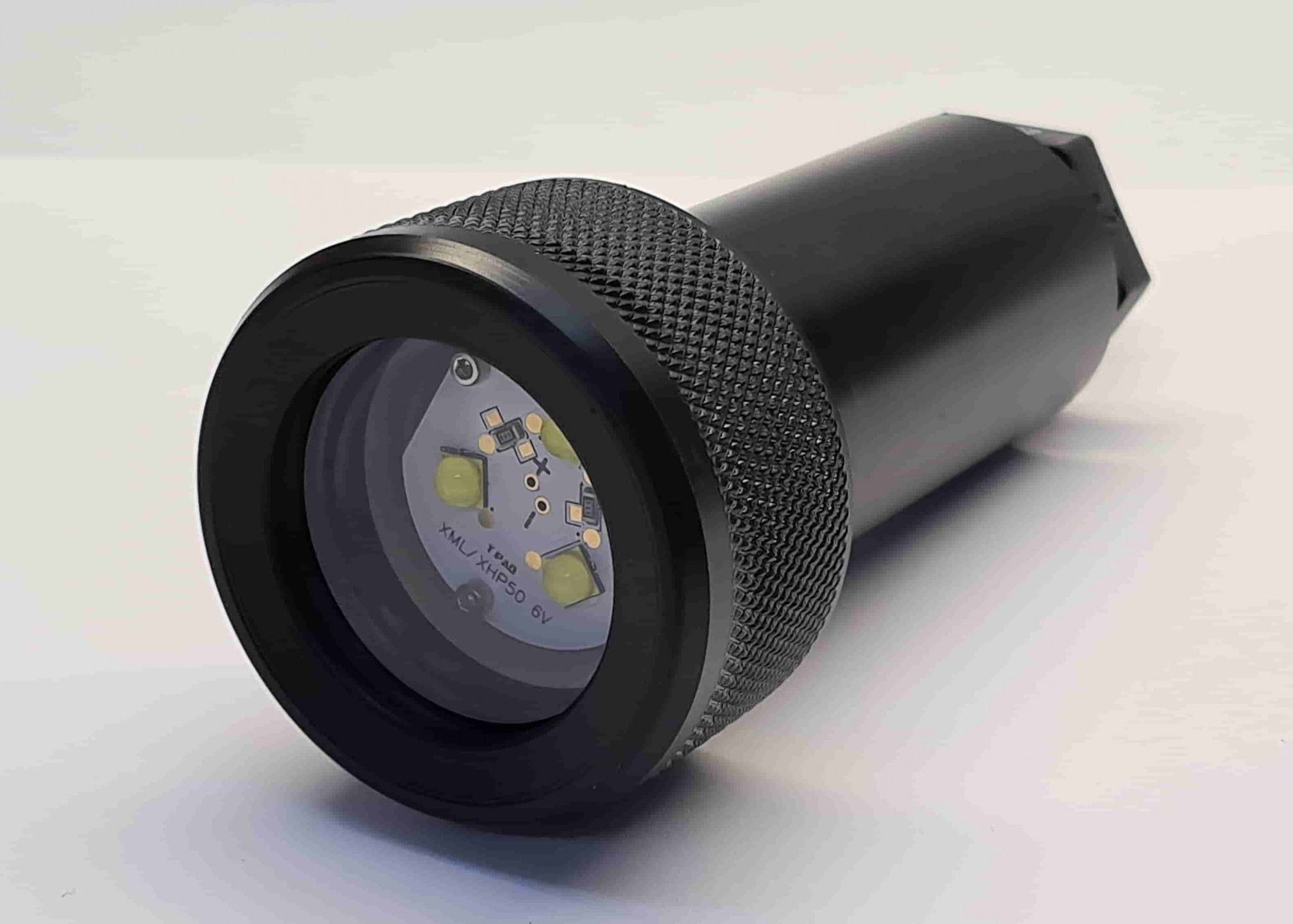

LED Light Specifications
Mechanical
Overall Length: 110mm excluding connector
Body diameter: 41mm
Material: Black Anodized Aluminium
Depth rating: 1000m
Electrical
Input Voltage: 24V DC
Power: 21 Watts
Analog Dimming: 5V DC to 0V DC or 24V DC to 0V DC (minimum to maximum)
LED Properties
Colour Temperature: 5000 K
Beam Angle: 110⁰ (approx)
Light Output: 3600 lumens (approx equivalent to 200W halogen)
Connector
XSG-3-BCL mates with RMG-3-FS
Standard Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
SD Lens: size 3.6mm
Image sensor: 1/3” Super Sony Effio IMX138+8520
Resolution: 1200TVL
Signal System: PAL / NTSC
Min Illumination: 0.001 Lux @ F1.2
Voltage: 15-30V DC
Camera Control Unit Specifications
Features
Independent power supplies for each diver.
Short circuit, overload & voltage overload protection.
Output sockets on rear panel can be specified by the purchaser & configured as required.
Enclosure
Size: 2U (88mm x 482mm x 280mm HxWxD)
Electrical
Input Voltage: 88-264V AC
SPECIFICATIONS
GENERAL
Power output: 28 Watts total (7 watts per channel)
Frequency response: 100Hz – 15kHz
Input Impedance: 100 ohms
Output Impedance: < 1 ohm
Mains power: 88-264V AC 47-63Hz
Battery power: 12VDC – smart charger built into unit.
Case: 2U rack mounted case – black powder coated steel
Fron
High Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
HD Lens: 3MP size 3.6mm
Image sensor: 1/3” Sony IMX291+FH8536E (Starlight)
Resolution: PAL 1920 x 1080 @ 25fps
NTSC 1920 x 1080 @ 30fps
Min Illumination: 0.0001 Lux @ F1.2
