Description
Enclosure
Size : 2U (88mm x 482mm x 280mm HxWxD)
Electrical
Input Voltage: 100-240V AC
Frequency: 47-63Hz
Recording is via an Intel NUC i3 with a 1000GB (1TB) SSHD & 8 GB RAM.
The system will record 116 hours of two diver recordings at 1920×1080 resolution.
Operating system is Linux with Rennisons proprietary video capture software.
The software is intuitive & very easy to operate.
It offers continuous recording of both divers with no file size limit.
An ‘As Built’ function is available where ‘snippets’ of the divers video can be saved independently of the main recording so there is no need to edit the main recording to obtain highlights. A ‘snap shot’ facility is also included. Date, time & overlay can be displayed on any recording.
The rear panel has an HDMI port for the main HD operating monitor for the supervisor.
This system can display multiple windows on the monitor, these being
Main operating screen with both Diver 1 & Diver 2 windows & recording controls.
Diver 1 full screen.
Diver 2 full screen.
Overlay full screen with overlays for both Diver 1 & Diver2 with up to 10 pages for each.
In addition it also has HDMI ports for Diver 1 & Diver 2 that can be connected to additional monitors to view raw Diver 1 & Diver 2 video.
A LAN port is included that will stream video at 1920×1080.

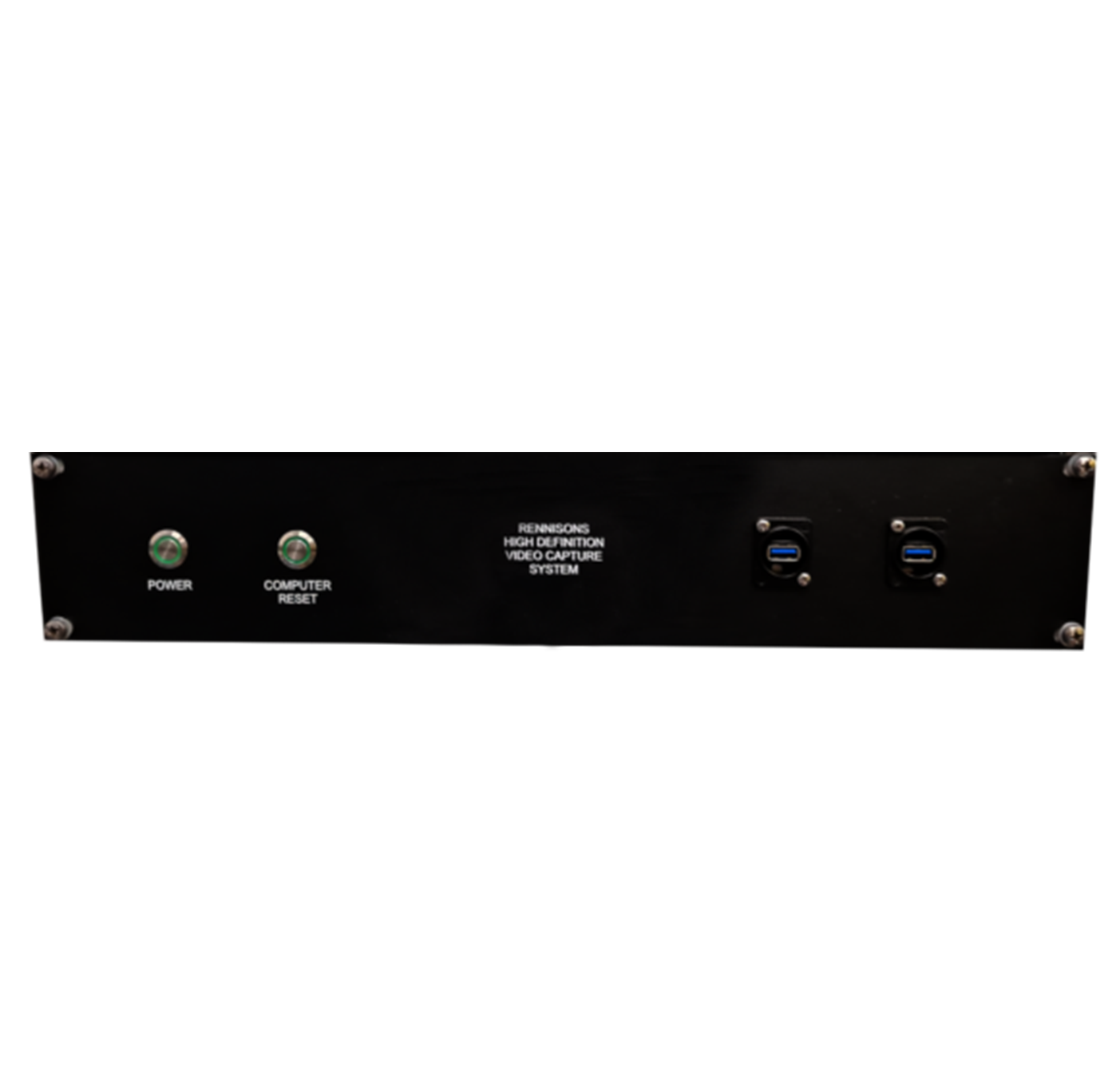

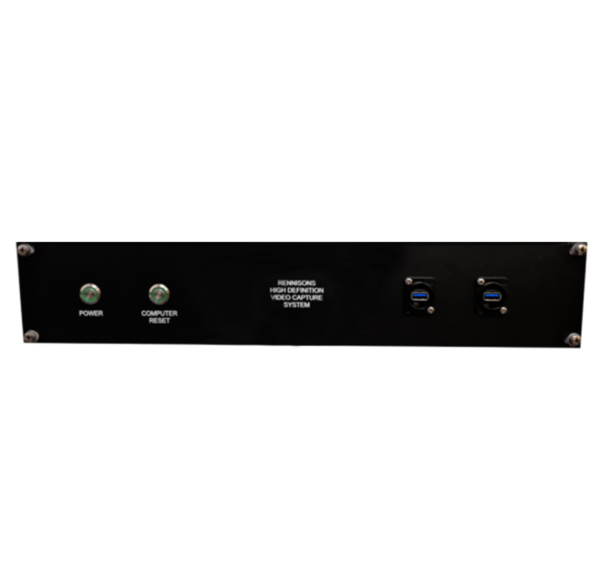

Two USB ports are included on both front & rear panels.
