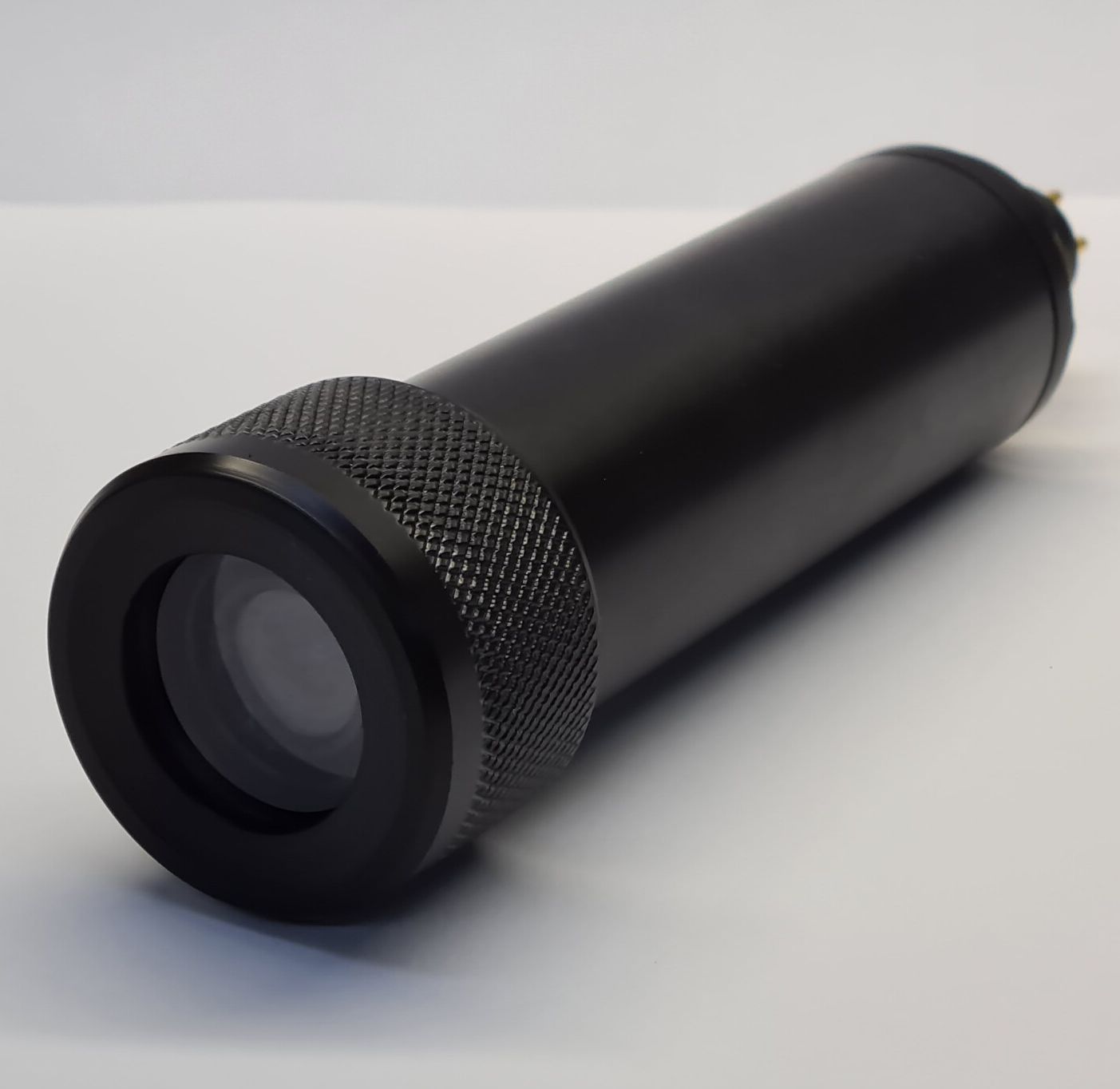

High Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
HD Lens: 3MP size 3.6mm
Image sensor: 1/3” Sony IMX291+FH8536E (Starlight)
Resolution: PAL 1920 x 1080 @ 25fps
NTSC 1920 x 1080 @ 30fps
Min Illumination: 0.0001 Lux @ F1.2
Voltage: 15-30V DC
Connectors
As user requires
LED Light Specifications
Mechanical
Overall Length: 110mm excluding connector
Body diameter: 41mm
Material: Black Anodized Aluminium
Depth rating: 1000m
Electrical
Input Voltage: 24V DC
Power: 21 Watts
Analog Dimming: 5V DC to 0V DC or 24V DC to 0V DC (minimum to maximum)
LED Properties
Colour Tempe
Camera Control Unit Specifications
Features
Independent power supplies for each diver.
Short circuit, overload & voltage overload protection.
Output sockets on rear panel can be specified by the purchaser & configured as required.
Enclosure
Size: 2U (88mm x 482mm x 280mm HxWxD)
Electrical
Input Voltage: 88-264V AC
Standard Definition Camera Specifications
Mechanical
Overall Length: 140mm excluding connector
Body diameter: 41mm
Material: Black Delrin
Depth rating: 1000m
Camera
SD Lens: size 3.6mm
Image sensor: 1/3” Super Sony Effio IMX138+8520
Resolution: 1200TVL
Signal System: PAL / NTSC
Min Illumination: 0.001 Lux @ F1.2
Voltage: 15-30V DC
